As Apple keeps upgrading camera specifications, iPhone camera modules grow bulkier year by year. Overheating, frame drops and unexpected shutdowns during long-time 4K recording or outdoor live streaming have long hindered further improvement of iPhone photography. Apple has recently obtained a new patent for liquid-cooled camera design, which is expected to fundamentally resolve the chronic overheating issue via structural optimization.

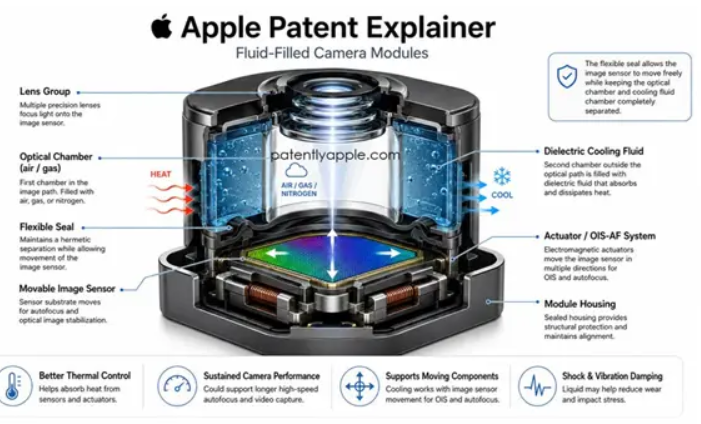

The patented design features an integrated precision camera module consisting of outer housing, lens assembly, movable substrate with image sensor and flexible sealing spacer. The spacer splits the inner space into two separate chambers. The optical chamber next to lenses is filled with nitrogen or other transparent inert gas to prevent light refraction distortion, while the rest of the space is filled with insulating mineral cooling liquid wrapping all heat-generating parts including image sensors, OIS motors and circuit components to conduct heat away efficiently.

Different from traditional graphite cooling and passive air cooling, liquid cooling reaches gaps around movable inner parts for full-range heat dissipation without blind spots, overcoming the limitation of conventional cooling solutions failing to contact internal moving elements. The coolant rapidly carries away heat generated under full load and prevents thermal throttling caused by excessive temperature.

Once mass-produced, the new technology will eliminate overheating, stuttering and abrupt recording termination during long outdoor livestreaming and event shooting. Free from thermal constraints, Apple no longer needs to cut computing power or limit recording duration for temperature control, enabling remarkable upgrades on iPhone’s photographic performance and continuous shooting capability. Meanwhile, the internal cooling fluid absorbs vibration and impact, extending the service life of optical anti-shake parts to realize both effective heat management and component protection.
